WITHDRAWABLE PANEL SYSTEM ?

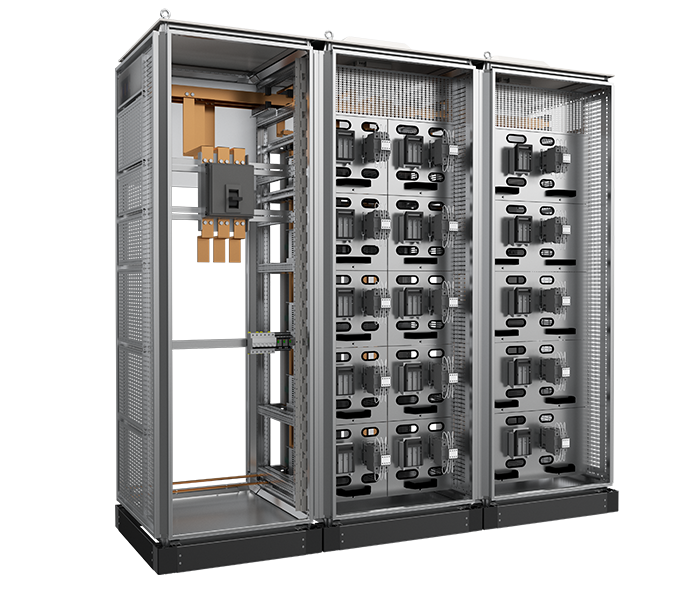

TT Series Withdrawable Type Capacitor Bank Panels have IEC 61439-1/2 KEMA Type Tests and are suitable for use in Industrial Facilities. Withdrawable Panel Systems provide the opportunity to intervene in the panel without power interruption in case of failure and maintenance.

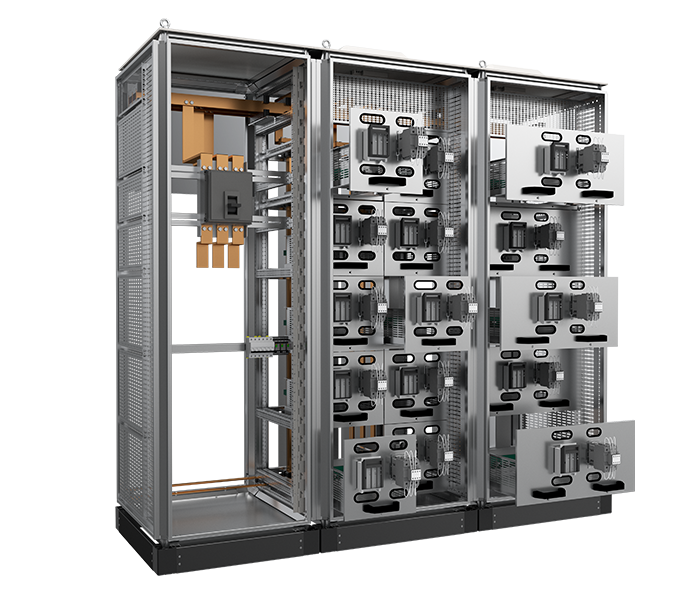

•Drawer modules can be removed and installed because of their plug-in structure, providing the operator with ease of use compared to cable systems.
•Before the drawer can be removed for repair and maintenance, the safety pin must first be removed.
•The types of drawers changing according to the shunt reactor, harmonic filter and capacitor sizes to be used inside. According to the project, the most suitable drawer is presented to the user.
•Forming structure is produced in accordance with Form 3b / 4b as standard.
High Capacity
Because of withdrawable compensation systems, we can make maximum use of a panel. With the regular arrangement of capacitors, up to 500kvar can be obtained in a cell.
Easy Service
It provides high savings to the user thanks to its system designed to quickly resolve the problems occurring in the facility. While the problem is resolved, other parts of the board continue to work actively.
Security Precautions
Because of form system, the user’s access to the energized sections is prevented. In addition, with the safety pin, it allows the user to remove the drawer more safely.
|
