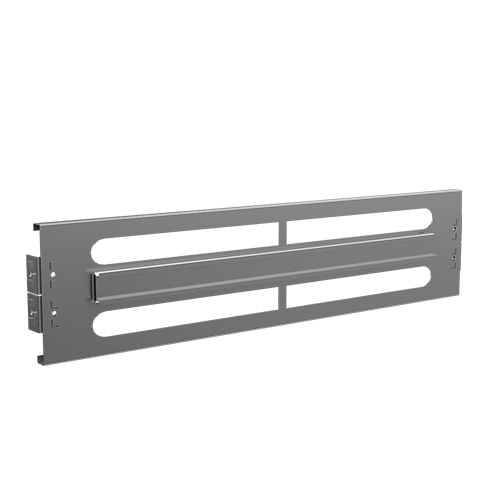

MCB’s Panel Rail and panel that prevents access to the busbar. Material: 1,5mm Galvanized + 3mm Aluminum Rail

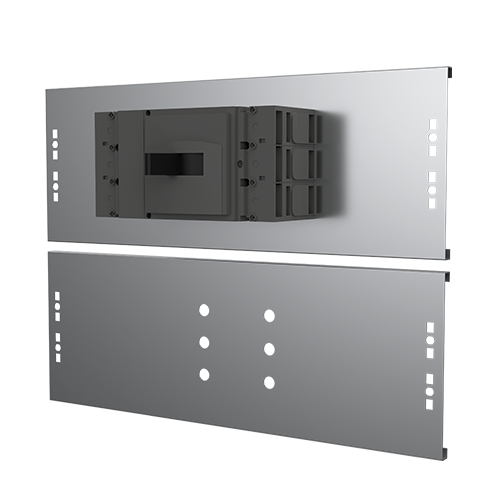

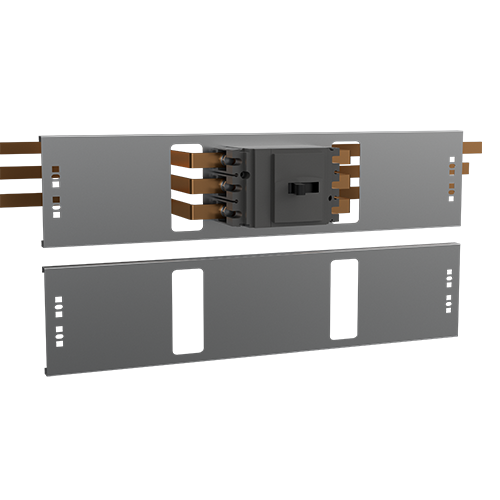

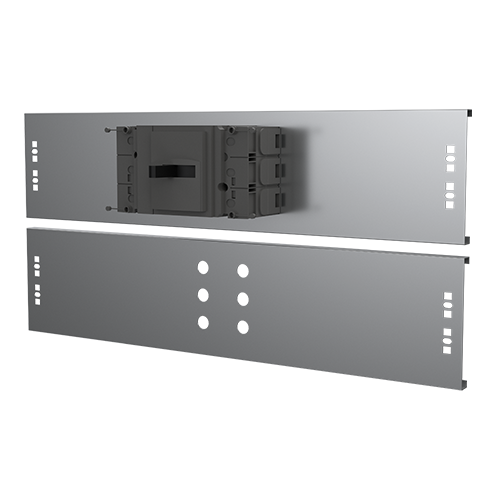

Horizontal Without Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards, but also protection cover is needed. Applicable Current Values 32A-250A Material: 1,5mm Galvanized

Horizontal Without Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards, but also protection cover is needed. Applicable Current Values 400A-630A Material: 2 mm Galvanized

Horizontal With Socket Fixed MCCB Panel Bara ulaşımını engelleyen tasarımı ile Form 3B standartlarına uygun hale getirir. Applicable Current Values 32A-250A Material: 1,5mm Galvanized

Horizontal With Socket Fixed MCCB Panel Bara ulaşımını engelleyen tasarımı ile Form 3B standartlarına uygun hale getirir. Applicable Current Values 400A-630A Material: 2 mm Galvanized

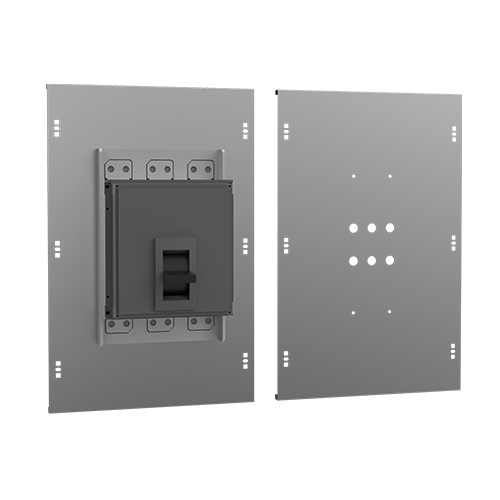

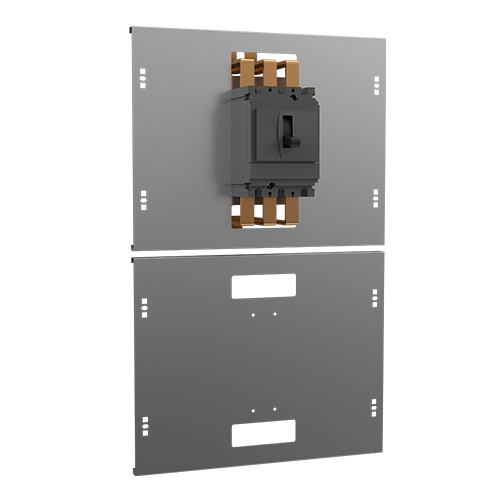

Vertical Without Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards, but also protection cover is needed. Applicable Current Values 32A-250A Material: 1,5 mm Galvanized

Vertical Without Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards, but also protection cover is needed. Applicable Current Values 400A-630A Material: 2 mm Galvanized

Vertical Without Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards, but also protection cover is needed. Applicable Current Values 800A-1250A Material: 2 mm Galvanized

Horizontal With Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards. Applicable Current Values 32A-250A Material: 1,5 mm Galvanized

Horizontal With Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards. Applicable Current Values 400A-630A Material: 2 mm Galvanized

Horizontal With Socket Fixed MCCB Panel With panel design that prevents access to the busbar, it complies with Form 3B standards. Applicable Current Values 800A-1250A Material: 2 mm Galvanized

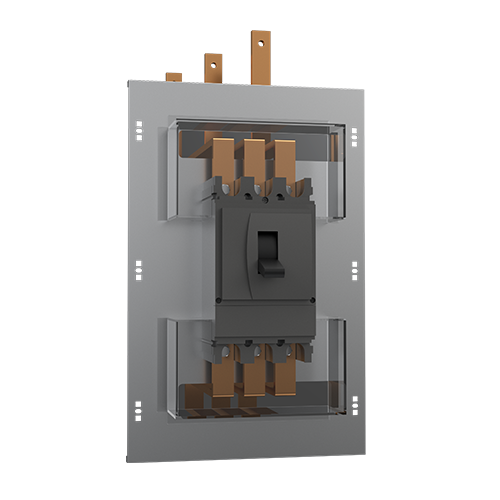

Terminal Protector Transparent Cover It enables the connection terminals of the MCCB to be closed, thus preventing the user from reaching the busbar. Cover sizes changing according to MCCB sizes. Material: 2 mm PC Glass

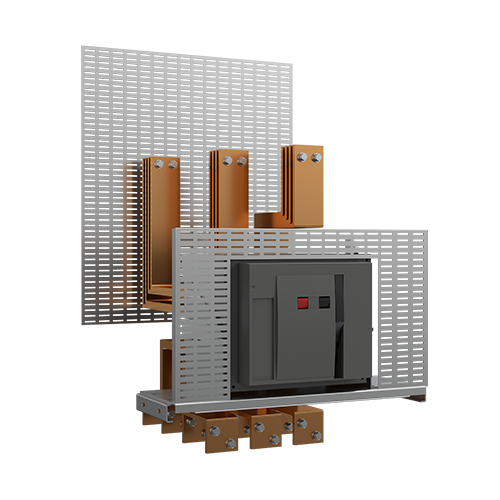

ACB’s Front and Back Cover Prevents access to the busbar from the front surface of the ACB. At the same time, another cover is applied to prevent access to the busbar section from back. Mataryel: 1mm Galvaniz

ACB Input and Output Busbar Separation It is applied to separate ACB input and output busbars from each other. It cannot be separated by sheet or metal. Insulating material must be used, such as PC glass. Material: 2 mm PC Glass

Inner Mounting Plate Mounting plate for motor circuit equipment. Uygulanabilen Güç Aralığı 0,15-25Kw Material: 1,5 mm Galvaniz

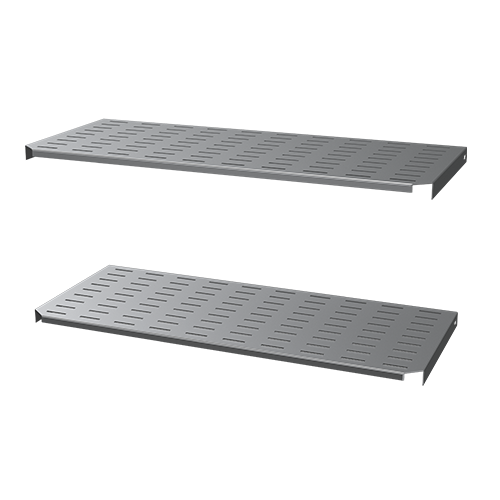

Inner Mounting Plate’s Bottom and Top Cover Covers prevent access to motor circuit equipment from bottom and top. Dimensions are changing according to board width and depth. Material: 1 mm Galvaniz

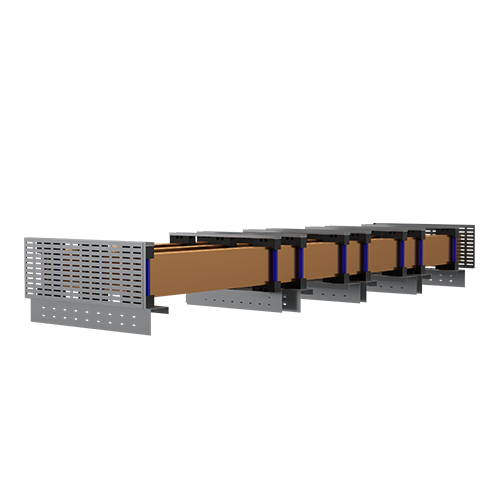

Main Busbar Front and Back Cover It covers front and back access to main busbar. Dimensions of covers changing depends on board and busbar widths. Material: 1 mm Galvaniz

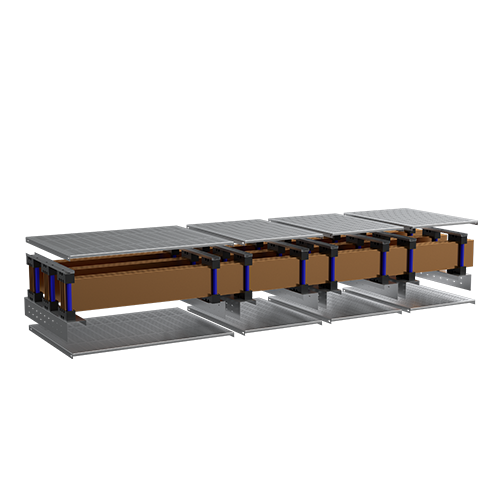

Main Busbar Bottom and Top Cover It covers bottom and top access to main busbar. Dimensions of covers changing depends on board width and depth. Material: 1 mm Galvaniz

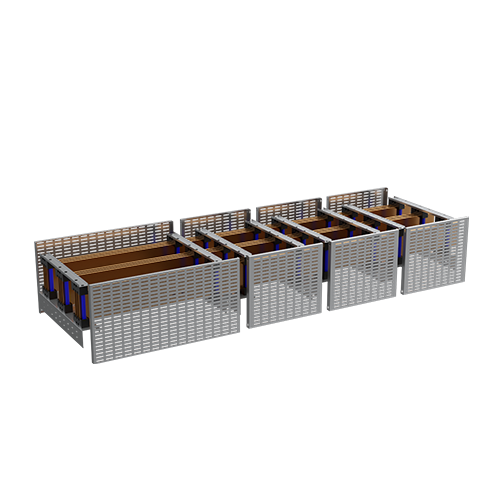

Main Busbar Right and Left Cover It covers right and left access to main busbar. Dimensions of covers changing depends on board depth and busbar width. Material: 1mm Galvanized, 2mm PC Glass

Board Front and Back Cover It completely covers board’s front and back. Dimensions of covers changing depends on board height and width. Especially uses in the vertical busbar cell. Material: 1 mm Galvaniz

Board Right and Left Cover It completely covers board’s right and left. Dimensions of covers changing depends on board height and width. Generally, uses in termination cells. Material: 1 mm Galvaniz

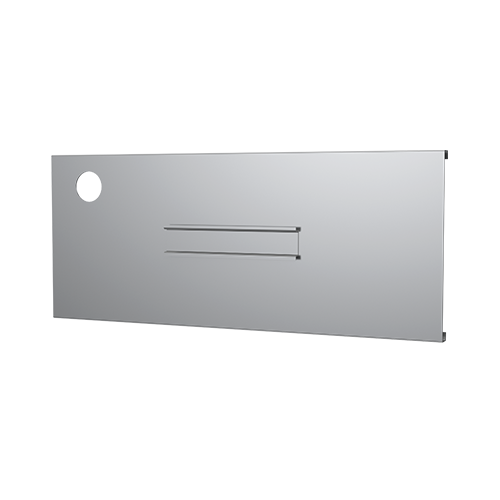

MCCB Cell Cover It covers between MCCB’s inputs and coppers to main busbar. Material: 1 mm Galvaniz

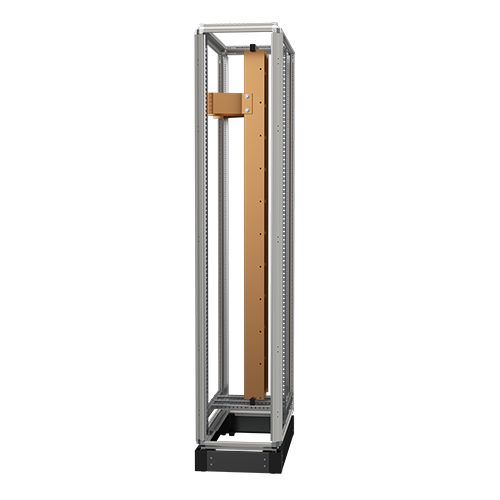

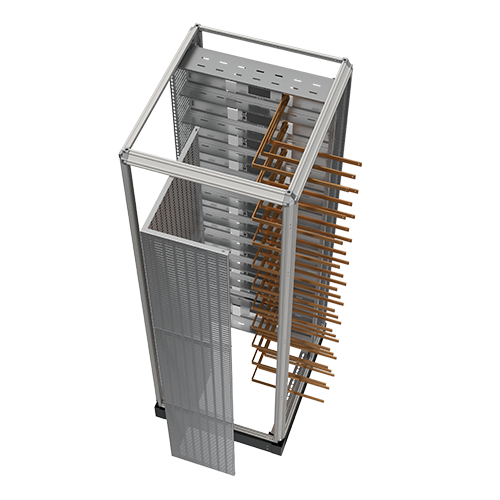

Vertical Busbar Cell It separates between main busbar and MCCB inputs because of vertical busbar cell.

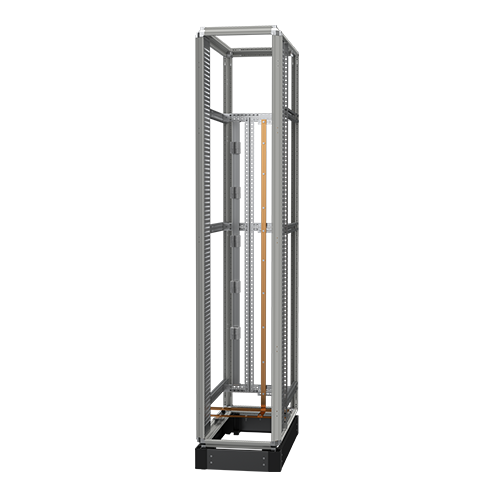

Terminal Cell It is the external conductor connection point. It conforms to Form 3B standards thanks to its separation from functional units and busbars. Material: 1 mm Galvaniz
